Digging this back up.  Updates will be coming pretty soon.  I have a couple big boxes of parts thanks to Myke_W and GAP, and the engine build will start (I hope) pretty quickly.

Laura and I decided to bump this project forward, as she lost her job recently and while before, we had the convenience of working close to home and I could drop her off, it might not be the case when she finds a new job, so she needs some wheels.  I replaced the water pump on the Corrado but the rest of the work is being put on the back burner until this is closer to completion.

We have some car-jockying to do, as my Scirocco (without an engine) is taking up the garage so we need to switch and put it outside where her car is currently sitting.  What sucks is I have to go around the block to get the car from the back to the front.  Still have to figure that one out....  :P

Brendan
81 Scirocco 'S -->Soon to be m-TDI
93 Corrado SLC VR6
'86 Golf N/A Diesel  -->Wife's car
1990 Audi CQ
05 New Beetle PD TDI


"I am a man, I can change... if I have to.... I guess....."

-Red Green

Reply #16April 13, 2009, 09:21:19 am

lord_verminaard

  • Veteran

  • Offline
  • ***

  • 1080
Wife's Project: 86 Golf NA (maybe TD?)
« Reply #16 on: April 13, 2009, 09:21:19 am »
Moar updates, moar pictars.

Started out on Sunday pushing the girl out in the driveway.


First order of business, modifying the block and head for updated cooling.  First, the block, all cleaned up:


And the AAZ head gasket...


Now THAT's a beefy headgasket!!!


Punched the hole location in the block, using the gasket as a template:


Annnnnndd....... Drill!


Repeat 5 more times (with my ancient drill that has this awesome feature of "self-loosening" the chuck so I have to pull out the chuck key and re-tighten it about every 2 minutes!!!) and chamfer the holes and clean it up, and ta-da!


And, had to do the same thing to the head, though it was much easier drilling.  :D

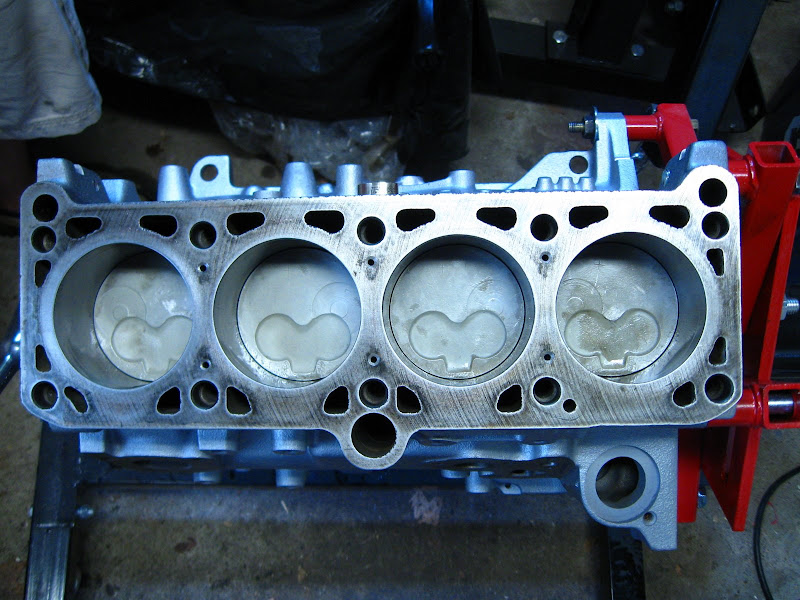

Here's a shot of the "custom hand-dressed pistons".  :D  As you can see, they all took a hit from the valves at one time.  No biggie.  They are getting packed up and sent to Swaintech this week.


This one was the worst, also evidence of an injector leaking.


Next up, block heater!  Every diesel needs one of these, especially in Ohio.  I'm really surprised this car didn't have one before, since it had just about every other option.


I had to knock out the center freeze plug, it took the biggest punch and the biggest hammer I had to free it.



 :banghead:

Yay!


Next up, I bead-blasted a whole mess of parts last weekend, time to paint them.




Manifolds- A2 GTI gasser intake manifold, (not blasted) and TD exhaust manifold.  The bead blasting was not quite enough to cut the rust on the exhaust manifold, I'll need to apply another type of treatment.


Yay, painted parts!  I used the wrinkle-finish on the valve cover, it was not quite done "curing" yet in this picture so the camera shots look funky.



And the art-shot of the day:


Almost time to put this thing together!  It's gonna look good under the hood too!


And a before shot of the engine when we picked it up:


One step at a time.....

Brendan
81 Scirocco 'S -->Soon to be m-TDI
93 Corrado SLC VR6
'86 Golf N/A Diesel  -->Wife's car
1990 Audi CQ
05 New Beetle PD TDI


"I am a man, I can change... if I have to.... I guess....."

-Red Green

Reply #17April 13, 2009, 09:42:31 am

TurboJ

  • Veteran

  • Offline
  • ***

  • 661
Wife's Project: 86 Golf NA (maybe TD?)
« Reply #17 on: April 13, 2009, 09:42:31 am »
Nice work!
Which manufacturer made that head gasket BTW?
---------------------------------------
Jetta II 1.6 TD 'Project 200'

Reply #18April 13, 2009, 11:26:27 am

subsonic

  • Veteran

  • Offline
  • ***

  • 1836
Wife's Project: 86 Golf NA (maybe TD?)
« Reply #18 on: April 13, 2009, 11:26:27 am »
You are going straight to a 3-hole?  That's going to drop your CR a bit, although perhaps not if you have a fair amount of protrusion.
2009 Jetta TDI Loyal edition, 6-spd. 16V 2.0CR


1985 VW Golf 5-spd, 4-door, 1.6NA  Bought from orig. owner in Savannah with 42,000 miles.
"Making the jump NA to TD" slow but sure.

1980 VW Rabbit LS 5-spd, 4-door 1.6NA almost 450,000miles  RIP

Reply #19April 13, 2009, 04:41:00 pm

lord_verminaard

  • Veteran

  • Offline
  • ***

  • 1080
Wife's Project: 86 Golf NA (maybe TD?)
« Reply #19 on: April 13, 2009, 04:41:00 pm »
Quote from: "TurboJ"
Nice work!
Which manufacturer made that head gasket BTW?


It's a Victor Reinz, I got it from Myke_W here.

Quote from: "subsonic"
You are going straight to a 3-hole? That's going to drop your CR a bit, although perhaps not if you have a fair amount of protrusion.


Yup, though it had a 3-notch fiber gasket on it before, the head obviously was swapped so who knows if the 3-notch is proper for the protrusion, but I didn't even bother to measure.  A little less compression isn't all that bad since this will be a turbo car.  :)  The Swaintech coating will build up on the piston crown, though if it is enough to significantly alter compression, who knows.

Brendan
81 Scirocco 'S -->Soon to be m-TDI
93 Corrado SLC VR6
'86 Golf N/A Diesel  -->Wife's car
1990 Audi CQ
05 New Beetle PD TDI


"I am a man, I can change... if I have to.... I guess....."

-Red Green

Reply #20May 05, 2009, 09:47:23 am

lord_verminaard

  • Veteran

  • Offline
  • ***

  • 1080
Wife's Project: 86 Golf NA (maybe TD?)
« Reply #20 on: May 05, 2009, 09:47:23 am »
More pictures coming soon.

Updates:  Got the crank installed.  Re-used the original thrust bearings, and even though I used stock size bearings, all of the clearances and end-play are dead on.  I love VW engines.  :)

The pistons are back from Swaintech, and they look sexy.  Myke is checking on piston pin circlips, as most of the old ones went flying across the garage when I popped them out- so I need those before I can finish the bottom-end.

I dropped off the head at the machine shop yesterday- I was originally going to just clean it up, put in new valve stem seals, and slap it on, but it's really dirty and the valve seats don't look real pretty.  So it's getting a valve job and he's gonna go ahead and hot-tank it too.

I also power-washed the engine bay.  Man does it look better.  That will make working on it much more pleasant.  :)

I'll do my best to post more pictures later.  I've literally not had enough time to even upload them.

Brendan
81 Scirocco 'S -->Soon to be m-TDI
93 Corrado SLC VR6
'86 Golf N/A Diesel  -->Wife's car
1990 Audi CQ
05 New Beetle PD TDI


"I am a man, I can change... if I have to.... I guess....."

-Red Green

Reply #21May 05, 2009, 11:22:06 am

arb

  • Veteran

  • Offline
  • ***

  • 1375
Wife's Project: 86 Golf NA (maybe TD?)
« Reply #21 on: May 05, 2009, 11:22:06 am »
Looking good. Do you have the baffle for under your valve cover ? It will reduce oil looses through the breather.

Reply #22May 05, 2009, 02:16:43 pm

lord_verminaard

  • Veteran

  • Offline
  • ***

  • 1080
Wife's Project: 86 Golf NA (maybe TD?)
« Reply #22 on: May 05, 2009, 02:16:43 pm »
Quote from: "arb"
Looking good. Do you have the baffle for under your valve cover ? It will reduce oil looses through the breather.


No I dont, actually.  On my list of things to get.  Thanks for the reminder!  :)

Updates with pictures!!!!!!!!!

Yay piktars!!!

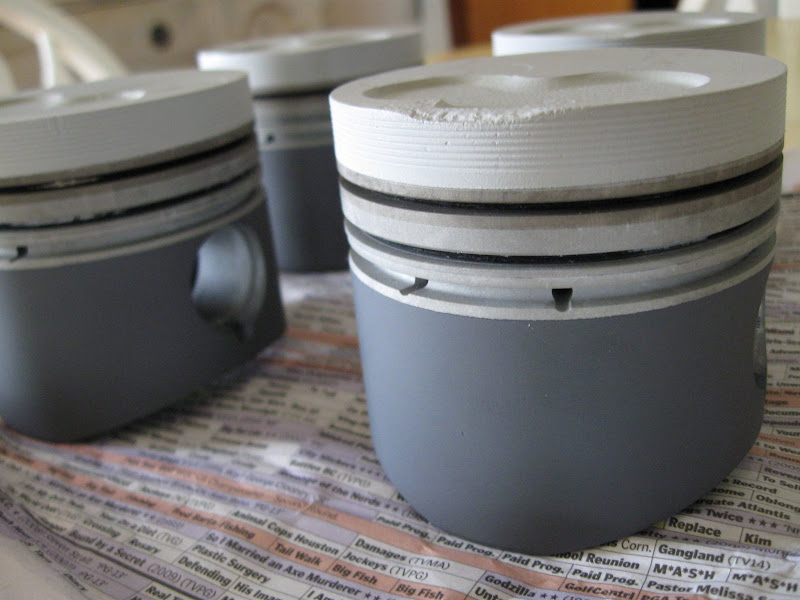

Pistons, freshly coated:






Yeah, I still gotta clean some carbon out of the ring lands.   :rolleyes:

Engine on my new stand:

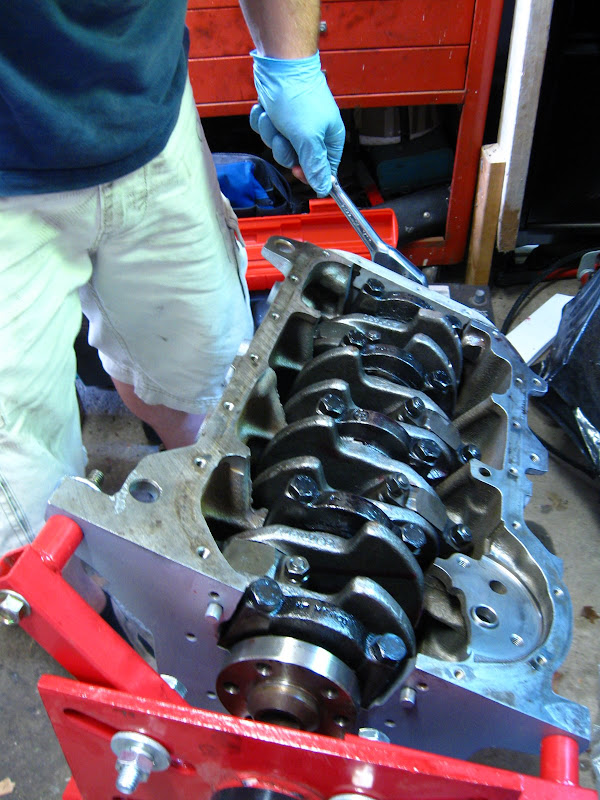

Crank in place:




Intermediate shaft and front seal:


Me looking way too serious- it was a joy to assemble this engine so far:


Now, the powerwashing.  Engine bay before:  Gross!!!


After:  Yay!  I have not even scrubbed anything yet, just washed.  Tools of choice were Simple green and a neighbor's powerwasher.  I also used some Gunk engine brite but it really didn't do much besides smell everything up (simple green smells much better) and leave a nasty residue all over the driveway.




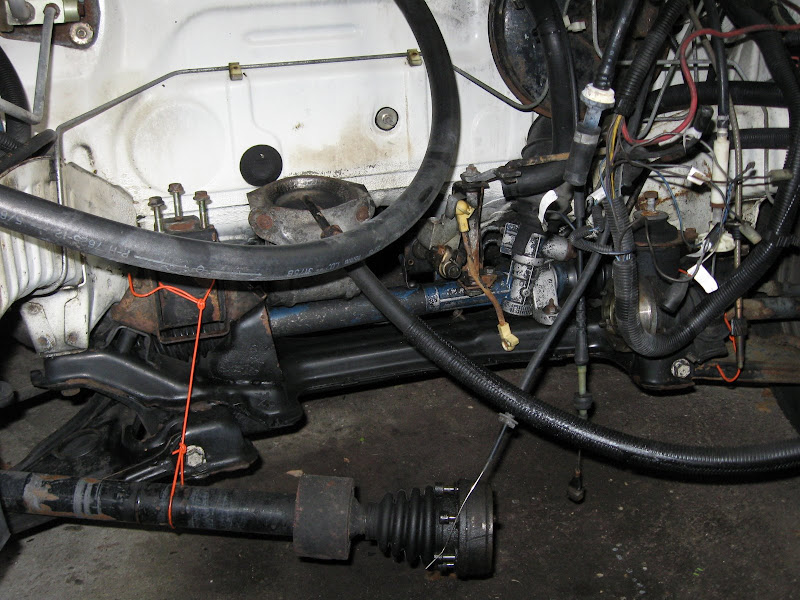

Woah, the steering rack was blue??

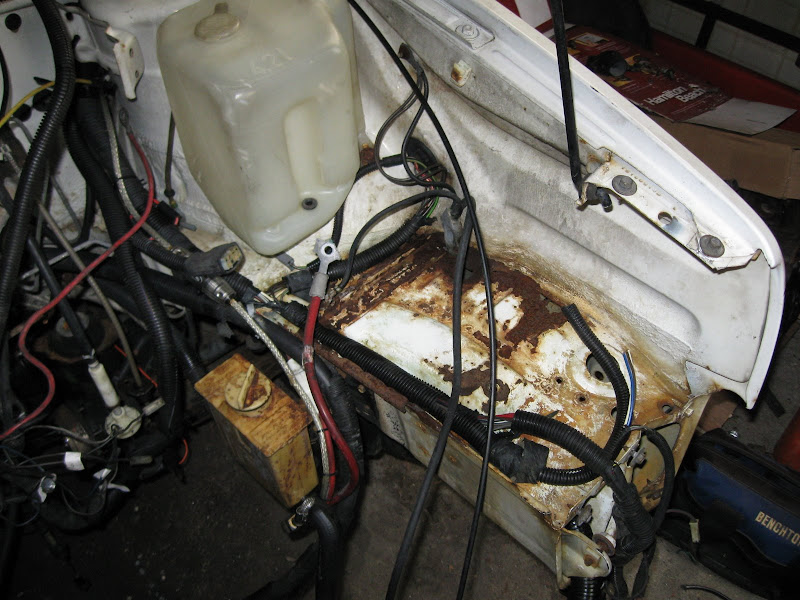

Battery tray rust.  No big deal.
