timing belt pix
« on: October 23, 2008, 04:36:45 pm »
I can't remember where I was reading, mod's feel free to move if you know where the post is, but someone had asked the question if you could lock the cam in 180∘out. So when I was doing my t-belt etc. I snapped some cell phone pix. Sorry for crappy pixelation, but it gets the point across.

180∘out but looking down. You COULD potentially slide something in there at a pretty bad angle, but it'd be obviously wrong.


180∘out looking right on


TDC proper #1 cyl


flywheel mark for TDC


flywheel mark up close

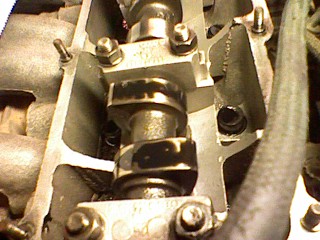

lobes create a flat spot on top , both pointing up as much as they can at the same time


view of lobes from above


IP locked in

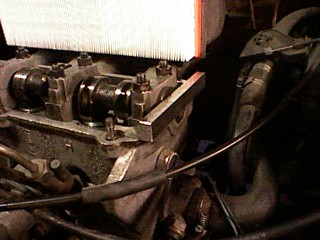

cam locked in


I hope those are useful   :D
« Last Edit: October 22, 2010, 02:43:30 pm by 79rabbit4dr »


Paul
LOCATION = Idaho 83440
----------
1979 Rabbit 4dr Gasser - For Parts
1981 Rabbit 4dr Diesel - For Parts
1981 Rabbit Pickup 1.6 NA - For Parts
1983 Jetta Coupe 1.6 TD - Feeler Part out
1997 Jetta VR6 - Part Out

Reply #1October 23, 2008, 04:54:59 pm

blkboostedtruck

  • Veteran

  • Offline
  • ***

  • 1535
timing belt pix
« Reply #1 on: October 23, 2008, 04:54:59 pm »
if you unscrew that plastic plug in the trans you will find an arrow in the trans that is more visible! i don't know if you knew that or not?
Duane
injector rebuilds call  414-840-1395 for faster service not on line much!
'66 variant 1500S
'81 2dr n/a 1.6 diesel rabbit 8"lift 260K R.I.P.
'81 caddy gas 1.8 turbo/stroker W/N.O.S.
'81 caddy 1.9 turbo diesel
'82 caddy gas 1.8 G60
 3 jettas '82' '04 '14TDI
+1 rabbit,03 HD sc.eag. duece,46,&5

Reply #2October 23, 2008, 06:06:15 pm

vwt4

  • Junior

  • Offline
  • **

  • 107
timing belt pix
« Reply #2 on: October 23, 2008, 06:06:15 pm »
Also, the proper cam locking tool will not fit in with the Cam 180 degrees out...

If you were using a wooden lollipop stick or similiar  :lol:  then it may be possible to bend it to fit!! but the VAG tool only goes in when the slot is in the correct 'upper horizontal' position form my experience.

and as the poster above says, the flywheel mark (which are a bit of a PITA to find until you know what yoru looking for) will confirm the cam position at TDC

Reply #3October 23, 2008, 07:39:02 pm

autoholic

  • Junior

  • Offline
  • **

  • 150
timing belt pix
« Reply #3 on: October 23, 2008, 07:39:02 pm »
True, but it is possible to get that 180 out with some of the tools I have seen, just remember to keep #1 cam lobes "rabbit ears up" Are all cams like the one shown in picture? I do not remember mine having the groove offset so much.
VW 1.6TD Samurai off roader
82 MBZ 300 TDT family roller
87 4KQ rally Xr
81 MBZ 240D winter commuter - best 200 i've ever spent!
Mitsu diesel 4x4 tractor
71 Toyota Hilux

Reply #4October 26, 2008, 08:16:15 pm

79rabbit4dr

  • Veteran

  • Offline
  • ***

  • 465
timing belt pix
« Reply #4 on: October 26, 2008, 08:16:15 pm »
Quote from: "blkboostedtruck"
if you unscrew that plastic plug in the trans you will find an arrow in the trans that is more visible! i don't know if you knew that or not?
Duane


I did know that, but figured dead center is where they'd put the arrow so I didn't mess with that stupid plug for too long. What's the easiest way to remove that anyway?

Quote from: "vwt4"
the proper cam locking tool will not fit in with the Cam 180 degrees out...

If you were using a wooden lollipop stick or similiar :lol: then it may be possible to bend it to fit!! but the VAG tool only goes in when the slot is in the correct 'upper horizontal' position form my experience.


That is pretty much what the other discussion was talking about, but nobody ever posted pix. I just wanted to show what people were talking about. That is, you CAN lock the cam in 180∘if you try hard enough, but it should be obvious that it is incorrect.

Quote from: "autoholic"
I do not remember mine having the groove offset so much.


it's hard to tell unless you specifically look for it, everyone should know that it is offset, but the point is it's offset to the point where it's impossible to lock the cam in 180∘out when using the proper tools. the problem was someone was asking if they could just use anything that would slide into place.

...  :oops:

I was going to plug Vince's write-up so I pulled up the site, re-read some of the comments on there and that might be where the discussion was happening that I remembered. Anyway, I printed his write up and had my Bentley open to make sure I didn't screw anything up. People make it out to be scarier than it actually is, imo.

p.s. http://vincewaldon.com/index.php?option=com_content&task=view&id=24&Itemid=28
Paul
LOCATION = Idaho 83440
----------
1979 Rabbit 4dr Gasser - For Parts
1981 Rabbit 4dr Diesel - For Parts
1981 Rabbit Pickup 1.6 NA - For Parts
1983 Jetta Coupe 1.6 TD - Feeler Part out
1997 Jetta VR6 - Part Out

Reply #5October 28, 2008, 10:13:09 pm

burn_your_money

  • Global Moderator
  • Veteran

  • Offline
  • ****

  • 9005
  • Personal Text
    Bright, On
timing belt pix
« Reply #5 on: October 28, 2008, 10:13:09 pm »
Easiest way I have found to remove the transmission plug is to put a 27mm (or 1 1/16") nut in it and then put a socket on it and unscrew it.
Tyler

Reply #6October 28, 2008, 10:28:36 pm

blkboostedtruck

  • Veteran

  • Offline
  • ***

  • 1535
timing belt pix
« Reply #6 on: October 28, 2008, 10:28:36 pm »
Quote from: "burn_your_money"
Easiest way I have found to remove the transmission plug is to put a 27mm (or 1 1/16") nut in it and then put a socket on it and unscrew it.


actually a bolt and 2nuts locked against each other! stick one side in the plug and the other for the socket to unscrew! works well!
Duane
injector rebuilds call  414-840-1395 for faster service not on line much!
'66 variant 1500S
'81 2dr n/a 1.6 diesel rabbit 8"lift 260K R.I.P.
'81 caddy gas 1.8 turbo/stroker W/N.O.S.
'81 caddy 1.9 turbo diesel
'82 caddy gas 1.8 G60
 3 jettas '82' '04 '14TDI
+1 rabbit,03 HD sc.eag. duece,46,&5

Reply #7October 29, 2008, 08:53:59 pm

Duster 5.9

  • Junior

  • Offline
  • **

  • 96
timing belt pix
« Reply #7 on: October 29, 2008, 08:53:59 pm »
both are good idea's but most of us can use what we already have without buying something. an injector body! 27mm
81 rabbit gas resting
81 rabbit cabby diesel n/a
85 jetta diesel n/a
85 golf diesel runs great
82 caddy diesel clean
82 caddy gas solid resting
and some parts cars

Reply #8October 30, 2008, 01:25:58 am

79rabbit4dr

  • Veteran

  • Offline
  • ***

  • 465
timing belt pix
« Reply #8 on: October 30, 2008, 01:25:58 am »
Quote from: "Duster 5.9"
both are good idea's but most of us can use what we already have without buying something. an injector body! 27mm


this is my first one, and i didn't get any spare parts so it looks like it's the 27mm bolt and nuts for me.

thanks everyone!
Paul
LOCATION = Idaho 83440
----------
1979 Rabbit 4dr Gasser - For Parts
1981 Rabbit 4dr Diesel - For Parts
1981 Rabbit Pickup 1.6 NA - For Parts
1983 Jetta Coupe 1.6 TD - Feeler Part out
1997 Jetta VR6 - Part Out

Reply #9October 30, 2008, 01:29:03 am

blkboostedtruck

  • Veteran

  • Offline
  • ***

  • 1535
timing belt pix
« Reply #9 on: October 30, 2008, 01:29:03 am »
Quote from: "79rabbit4dr"
Quote from: "Duster 5.9"
both are good idea's but most of us can use what we already have without buying something. an injector body! 27mm


this is my first one, and i didn't get any spare parts so it looks like it's the 27mm bolt and nuts for me.

thanks everyone!


I win!!!! :P  :P
 :D Duane
injector rebuilds call  414-840-1395 for faster service not on line much!
'66 variant 1500S
'81 2dr n/a 1.6 diesel rabbit 8"lift 260K R.I.P.
'81 caddy gas 1.8 turbo/stroker W/N.O.S.
'81 caddy 1.9 turbo diesel
'82 caddy gas 1.8 G60
 3 jettas '82' '04 '14TDI
+1 rabbit,03 HD sc.eag. duece,46,&5

Reply #10October 30, 2008, 01:31:59 am

79rabbit4dr

  • Veteran

  • Offline
  • ***

  • 465
timing belt pix
« Reply #10 on: October 30, 2008, 01:31:59 am »
Quote from: "blkboostedtruck"
Quote from: "79rabbit4dr"
Quote from: "Duster 5.9"
both are good idea's but most of us can use what we already have without buying something. an injector body! 27mm


this is my first one, and i didn't get any spare parts so it looks like it's the 27mm bolt and nuts for me.

thanks everyone!


I win!!!! :P  :P
 :D Duane



 :roll:  you're awesome Duane. Bet you're a cool guy to hang with. Can't be too bad w/ that truck you got  :twisted:
Paul
LOCATION = Idaho 83440
----------
1979 Rabbit 4dr Gasser - For Parts
1981 Rabbit 4dr Diesel - For Parts
1981 Rabbit Pickup 1.6 NA - For Parts
1983 Jetta Coupe 1.6 TD - Feeler Part out
1997 Jetta VR6 - Part Out

Reply #11October 30, 2008, 01:43:26 am

blkboostedtruck

  • Veteran

  • Offline
  • ***

  • 1535
timing belt pix
« Reply #11 on: October 30, 2008, 01:43:26 am »
Quote from: "79rabbit4dr"
Quote from: "blkboostedtruck"
Quote from: "79rabbit4dr"
Quote from: "Duster 5.9"
both are good idea's but most of us can use what we already have without buying something. an injector body! 27mm


this is my first one, and i didn't get any spare parts so it looks like it's the 27mm bolt and nuts for me.

thanks everyone!


I win!!!! :P  :P
 :D Duane



 :roll:  you're awesome Duane. Bet you're a cool guy to hang with. Can't be too bad w/ that truck you got  :twisted:


ahh shucks thanks buddy! but you know what they say?
if you can't baffle them with brilliance? hassle them with bull***!     :wink:
Duane
injector rebuilds call  414-840-1395 for faster service not on line much!
'66 variant 1500S
'81 2dr n/a 1.6 diesel rabbit 8"lift 260K R.I.P.
'81 caddy gas 1.8 turbo/stroker W/N.O.S.
'81 caddy 1.9 turbo diesel
'82 caddy gas 1.8 G60
 3 jettas '82' '04 '14TDI
+1 rabbit,03 HD sc.eag. duece,46,&5

Reply #12October 30, 2008, 09:20:42 pm

Duster 5.9

  • Junior

  • Offline
  • **

  • 96
timing belt pix
« Reply #12 on: October 30, 2008, 09:20:42 pm »
Quote from: "blkboostedtruck"
Quote from: "79rabbit4dr"
Quote from: "blkboostedtruck"
Quote from: "79rabbit4dr"
Quote from: "Duster 5.9"
both are good idea's but most of us can use what we already have without buying something. an injector body! 27mm


this is my first one, and i didn't get any spare parts so it looks like it's the 27mm bolt and nuts for me.

thanks everyone!


I win!!!! :P  :P
 :D Duane



 :roll:  you're awesome Duane. Bet you're a cool guy to hang with. Can't be too bad w/ that truck you got  :twisted:


ahh shucks thanks buddy! but you know what they say?
if you can't baffle them with brilliance? hassle them with bull***!     :wink:
Duane

 ya but your idea is alaround better for everyone. i'll try harder next time! :lol:
81 rabbit gas resting
81 rabbit cabby diesel n/a
85 jetta diesel n/a
85 golf diesel runs great
82 caddy diesel clean
82 caddy gas solid resting
and some parts cars

Reply #13November 03, 2009, 06:27:19 am

Makebeleaf

  • Junior

  • Offline
  • **

  • 57
Re: timing belt pix
« Reply #13 on: November 03, 2009, 06:27:19 am »
I didn't have any of those things. It wasn't the easiest but I just used some vice grips- locking them on the inside and outside of the plug and turning...
Took a few minutes but it come out easy enough!

Reply #14July 22, 2011, 02:51:38 pm

erice1984

  • Veteran

  • Offline
  • ***

  • 263
Re: timing belt pix
« Reply #14 on: July 22, 2011, 02:51:38 pm »
I know this is old, but I did once lock the injection pump 180 degrees out while changes my timing belt.  No damage was done, it just wouldn't start.  I recommend finding TDC locking the injection pump then removing the timing belt for replacement.
1980 Rabbit 1.9TD
